Forming machines

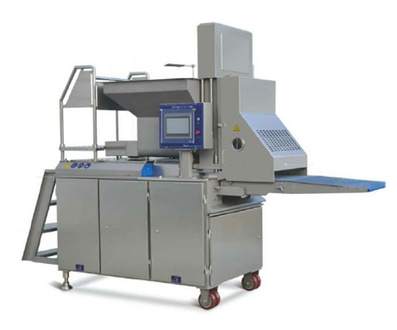

Automatic forming machines fill and form meat, poultry, fish, shrimp and vegetables with high repeat positioning accuracy and fewer wearing parts. Servo control prevents crushing, hydraulic filling with a precise cavity prevents leakage, touchscreen control with auto fault diagnosis, wear-resistant metal mould plates, and software that matches forming speed to conveyor speed.

Model	Belt width	Capacity	Power
T600-V	600 mm	800–1600 kg/h	28.12 kW
T600-IV	600 mm	500–1000 kg/h	15.12 kW
T400-11	400 mm	200–600 kg/h	11.12 kW
T260-11	200 mm	100–300 kg/h	5.56 kW
T150	150 mm	about 80 kg/h	0.1 kW

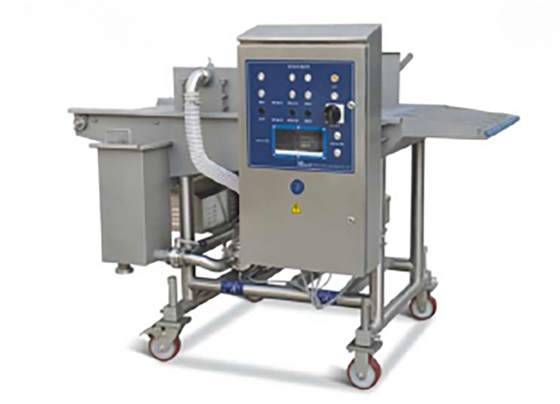

Batter & tempura machines

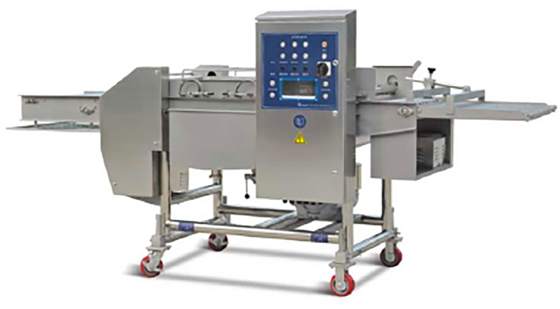

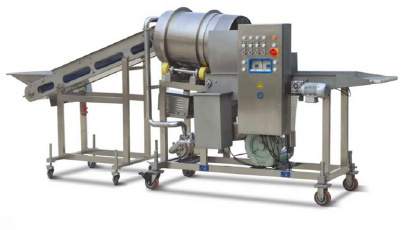

The batter machine gives an even coat with a two-layer batter curtain and under-bath ahead of breading or predusting; the tempura dipper coats by dipping, with an adjustable gap between belts and a blower to remove excess; the drum batter tumbles chicken and seafood for even coverage. Stainless steel, Siemens electrics, HACCP-friendly.

Machine	Belt / tank	Details
Batter T400/600/1000-V	400 / 600 / 1000 mm belt	3–15 m/min, 2.6 kW
Tempura dipper T400/600/1000	400 / 600 / 1000 mm belt	3–15 m/min, 2.17 kW, output height 800 ± 50 mm
Drum batter T400-V / T600-Y	100 L tank	Medium / high viscosity

Batter mixers

Mix powder and water evenly for tempura and high-viscosity batters. The T100-II has a double-layer tank for ice cooling at 10–20 °C and auto-feeds the battering machine by pump; the T200-II has a movable independent tank that can feed two or more battering machines, with automatic mixing time and a removable mixing section.

Model	Capacity	Power	Dimensions (mm)
T100-II	100 L	1.1 kW (pump 1.5 kW)	1330 × 836 × 1330
T200-II	200 L	1.1 kW	1300 × 790 × 2100

Predusters, airflow & breaders

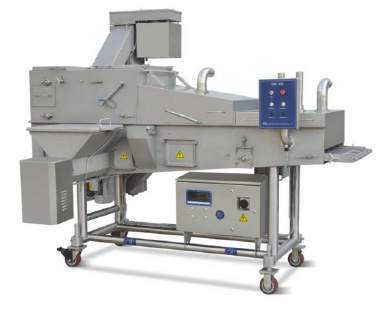

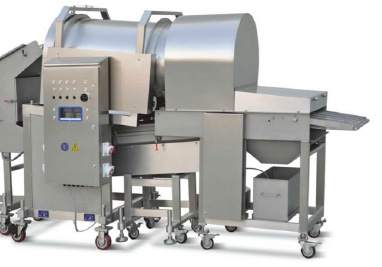

The preduster (flouring machine) coats the underside and top evenly, with a side powder hopper and recycling airflow system (T-III, 5.5 kW) that collects dust and blows off excess flour. The drum breader coats by tumbling, with adjustable flour bed and a vibrating screen that recycles flour; the breader applies crumb top and bottom for chicken, beef and seafood.

Machine	Belt	Power
Preduster T400-VI / T600-VI / T1000-VI	400 / 600 / 1000 mm	2.93 / 2.93 / 4.9 kW
Drum breader T600-VII	600 mm	3.61 kW
Breader T400-V / T600-V / T1000-V	400 / 600 / 1000 mm	3.7 / 3.7 / 4.7 kW

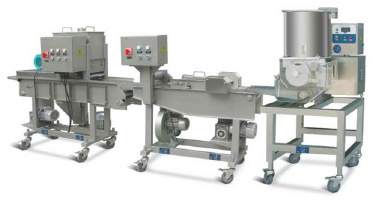

Burger & nugget forming

The automatic burger forming machine disperses, flattens and divides ground meat or mixed vegetable into patties of consistent weight and shape (T500-II: 7500 pcs/h, 1.6 kW, 420 mm belt). The mini automatic hamburger and nugget line forms, batters, flours and crumbs for small to medium factories, with hamburger formers (35 pcs/min) and T200-II battering, breading and predusting machines (100 kg/h).

Cooking, frying & freezing

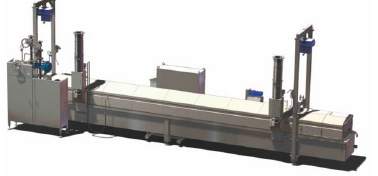

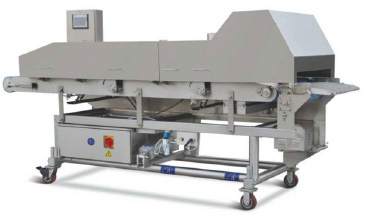

The combined contact cooker browns both sides with two non-stick belts up to 260 °C, without added fat (T600-V: 560 × 1800 mm cooking area, 61 kW). The modular fryer comes in 4–8 m lengths and 450, 650, 800 and 1050 mm widths for crumb and tempura products. The spiral freezer has a hygienic insulated enclosure, large-fin evaporator for CO₂ refrigeration, stainless mesh belt and balanced circular airflow.

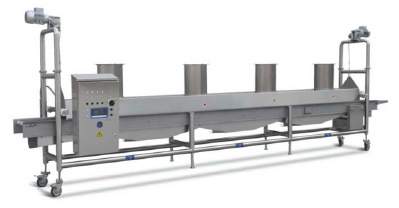

Cooling, coating & handling

Ice water coating machine adds 2–5% product weight with a fine mist (T400/600/1000-V, 0.55 kW, IP65). Cooling machine connects between fryer and freezer to cut freezer load. Bucket lift T200-II: 250 kg, 2200 mm, 1.0 kW. Plus 90° curve conveyors and custom-length conveyors, all stainless steel with Siemens electrics.

Meat cutting & slicing, full machine list

Full range of food processing and meat cutting equipment.

Food processing	Meat cutting & slicing
Batter machines and mixers, crumbing / breading, continuous fryer, food forming, cube-perforator, meatball maker, multi-drum and drum breaders, preduster pro, flouring machines, airflow system, tempura battering, contact cooker, automatic shuttle transfer, bucket elevator, belt / curved / cooling conveyors, ice water coating, meat aligning, vibratory conveyors, spiral freezer	Portion cutter, horizontal slicer, template slicer, fresh slicer, strip cutter and dicer, intelligent dicer, meat flattener, meat tenderizer, meat shredder

Warranty

12-month warranty on all machinery and a 3-month warranty on all wear parts.
